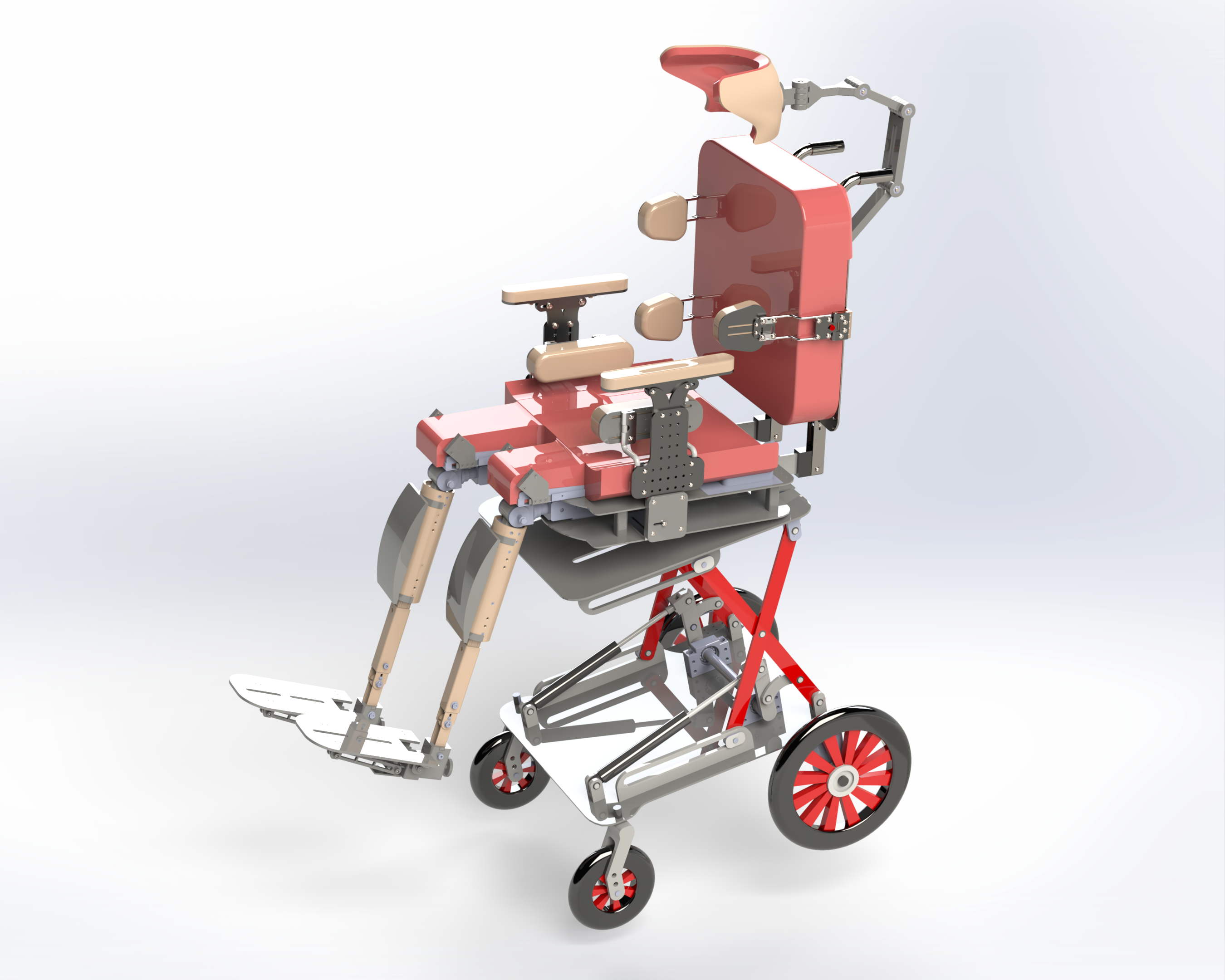

Figure 1 – Final rendered concept of the customizable CP chair.
Project Brief & Objectives
- Goal: Design an adjustable seating solution for children with cerebral palsy that adapts to individual postural needs.
- Clinical input: Iterated requirements with therapists (seat depth/width, back support angles, lateral supports, headrest options).
- Constraints: Low-cost components, modularity, ease of cleaning, compatibility with standard mobility bases.
My Role
- Led concept generation and parametric CAD of the seat, back, and support assemblies.
- Coordinated clinician feedback sessions and translated feedback into design changes.
- Prepared manufacturing drawings, tolerancing, and 3D printed verification parts.
Methods & Skills
SolidWorks
GD&T
3D Printing
Human Factors
Design for Manufacturability
Requirement Engineering
Gallery
headrest of the chair. designed for distributed pressure and multi degree of static and dynamic freedom.

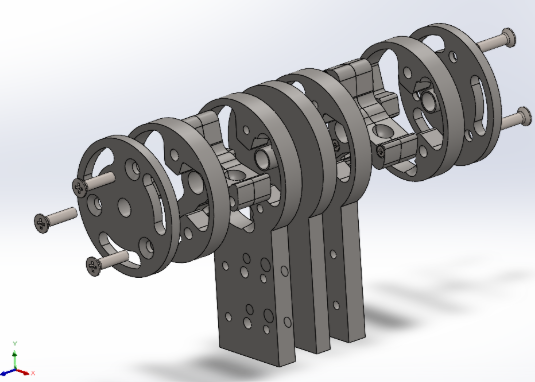

a designed mechanism for enabling static and dynamic freedom for knee part.

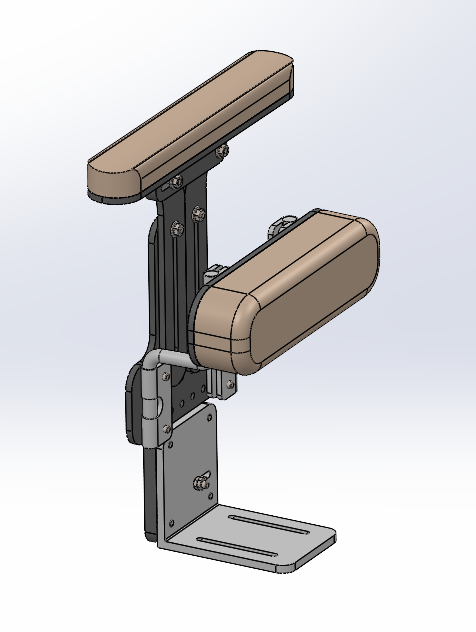

armrest designed part.
